End Caps (Special R&D and Production)
“ End Caps (Special R&D and Production ”

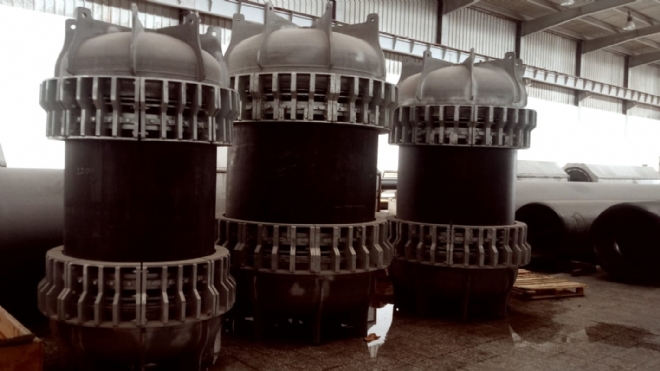

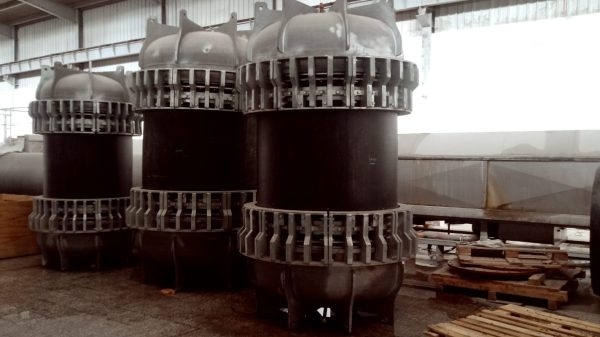

Our 1600 diameter END CAP Closing Caps are custom-produced in Egypt, catering to the specific requirements of El Nour company. These closing caps are designed with a focus on high-pressure resistance, utilizing manufacturing materials such as steel and stainless steel. The inclusion of an adjustable gasket adds to the versatility and adaptability of these closing caps.
Key Features:
-
High-Pressure Resistance: These closing caps are engineered to withstand high-pressure conditions, ensuring reliable performance during hydrostatic pressure testing.
-
Material: Manufactured using high-quality steel and stainless steel materials, enhancing durability and longevity.
-
Adjustable Gasket: The presence of an adjustable gasket contributes to better sealing, allowing for adaptability to different pipe dimensions.
-
No Pressing or Hammering Required: The design eliminates the need for pressing and hammering during hydrostatic pressure testing, simplifying the testing process.
-
Mountability: The closing caps are designed for easy mounting, facilitating a user-friendly experience.
-
Special Gasket Design: The unique gasket design improves sealing performance and ensures a secure fit.
-
Ideal Design for Tests: Specifically designed for long-term, life-span, and endurance tests, meeting the requirements of TS EN ISO 1167 and ASTM D 1598-1599 standards.
-
Deformation Tolerance: The measurement characteristic accommodates pipe deformations during the hydrostatic pressure test.
-
Screw Pressure Design: The use of a special screw pressure design eliminates the need for hammering and pressing, contributing to a hassle-free sealing process.
-
Adaptive Seal Production: The seals are adaptively produced using silicone/rubber material, and they comply with galvanized steel or 304 and 316L stainless steel standards outlined in TS EN ISO 1167 and ASTM D 1598-1599.
-
Compatibility: Suitable for use with PE, PP, PERT, and PEX pipes, covering a diameter range from 800 to 2600 mm.
These 1600 diameter END CAP Closing Caps provide a reliable solution for hydrostatic pressure testing, offering durability, adaptability, and ease of use in various pipe testing applications.
